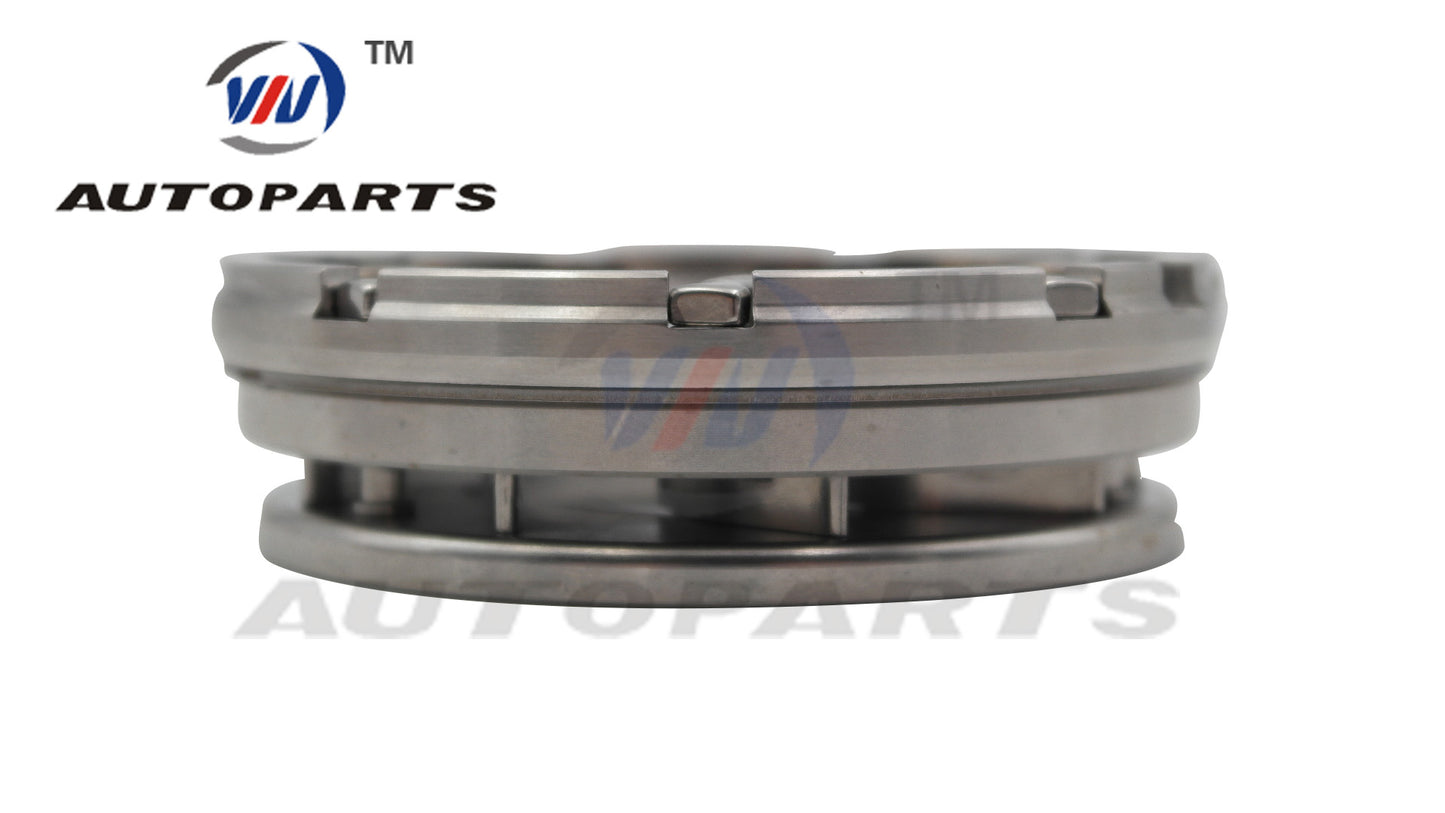

VNT Nozzle Ring VIV07-075VNT for 54389700001, 54389700009 BV38/KP38 Turbocharger

Dimensions:
external diameter : 82.4-82.5 mm
internal diameter : 38.9-38.95 mm
Mounting plate Height : 11.1±0.05 mm
Blades Angle : 61
Blades Height : 4.69-4.73 mm
Blades Quantity : 9

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : BV38/KP38

Turbochargers
Part No. : 54389700000 54389700001 54389700007
OE No. : 144115874R, 14411-5874R, 144117969R, 14411-7969R, 821067824, 14411-9252R, 144119252R, H821067824
