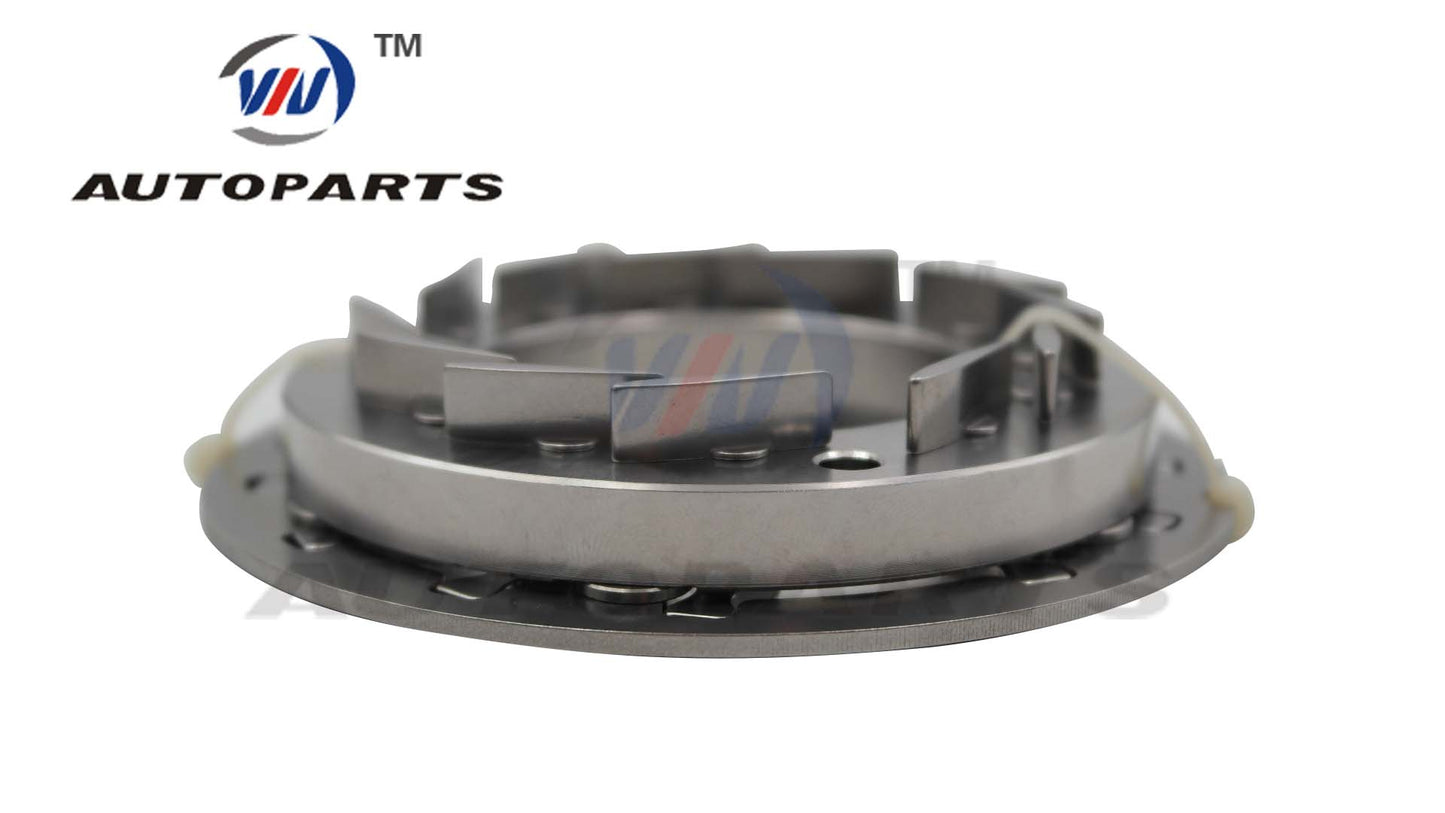

VNT Nozzle Ring VIV07-071VNT for 454150-0004, 707114-0001 TD2503 Turbocharger

Dimensions:
external diameter : 89.7±0.05 mm
internal diameter : 54.9±0.05 mm
Mounting plate Height : 10.2±0.05 mm
Blades Angle : 58
Blades Height : 6.99-7.03
Blades Quantity : 12

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : TD2503

Turbochargers
Part No. : 454150-0001/2/3/4/5 454150-5005S
OE No. : 46763887, 46520528, 71723546, 71783343

Part No. : 707114-0001 751758-5001S
OE No. : 5001855042, 500379251, 5001855042, 500379251
