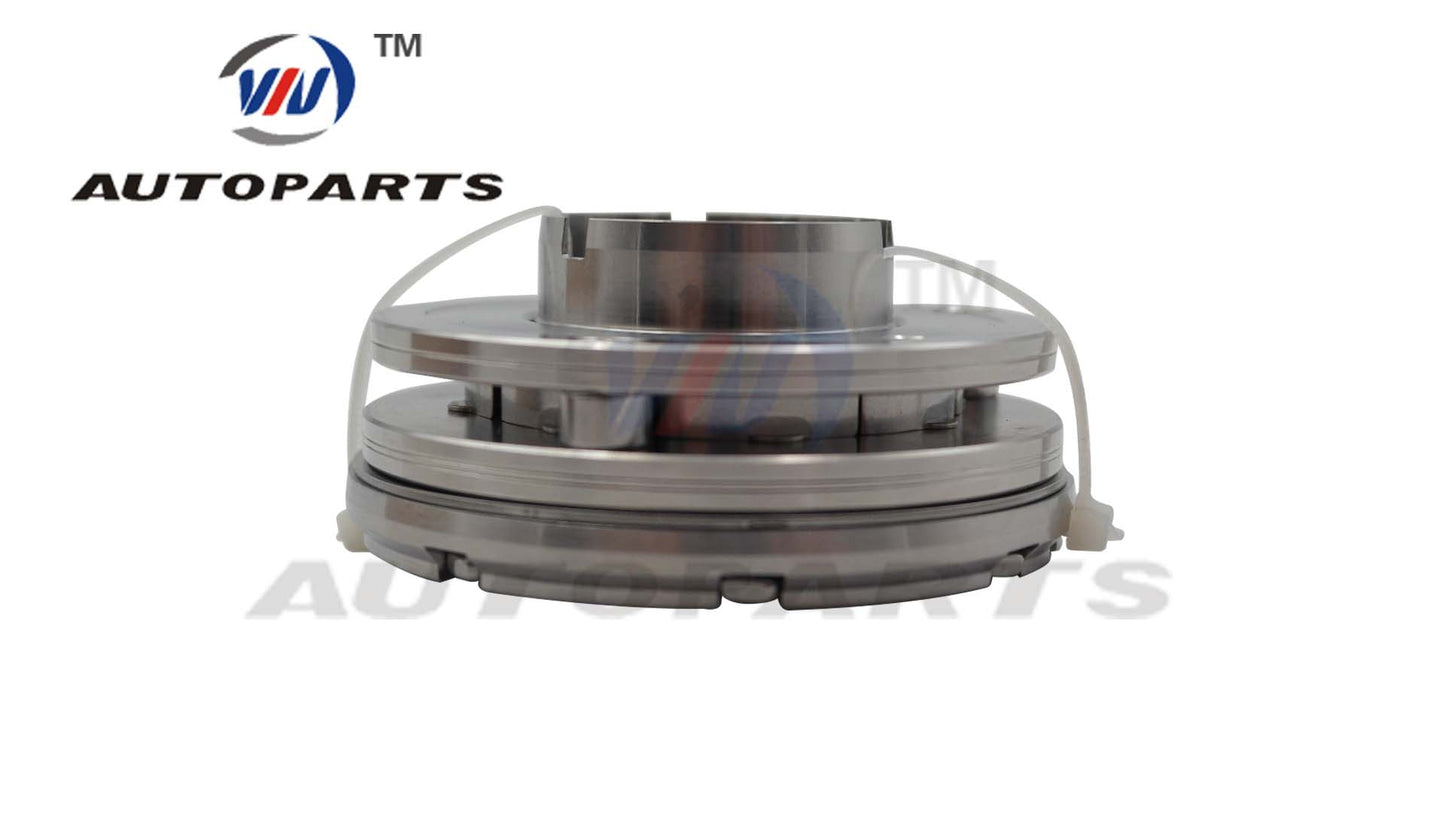

VNT Nozzle Ring VIV07-050VNT for 54399700029,54399700048 BV39 Turbocharger

Dimensions:
external diameter : 79 ±0.05 mm
internal diameter : 40.7±0.05 mm
Mounting plate Height : 11±0.05 mm
Blades Angle : 70
Blades Height : 5.29-5.33
Blades Quantity : 8

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : BV39

Turbochargers
Part No. : 54399700029 54399880029
OE No. : 03G253019K, 03G253019KX, 03G253019KV

Part No. : 54399700048
OE No. : 03G253019K, 03G253019J, 03G253019JV, 03G253019JX
