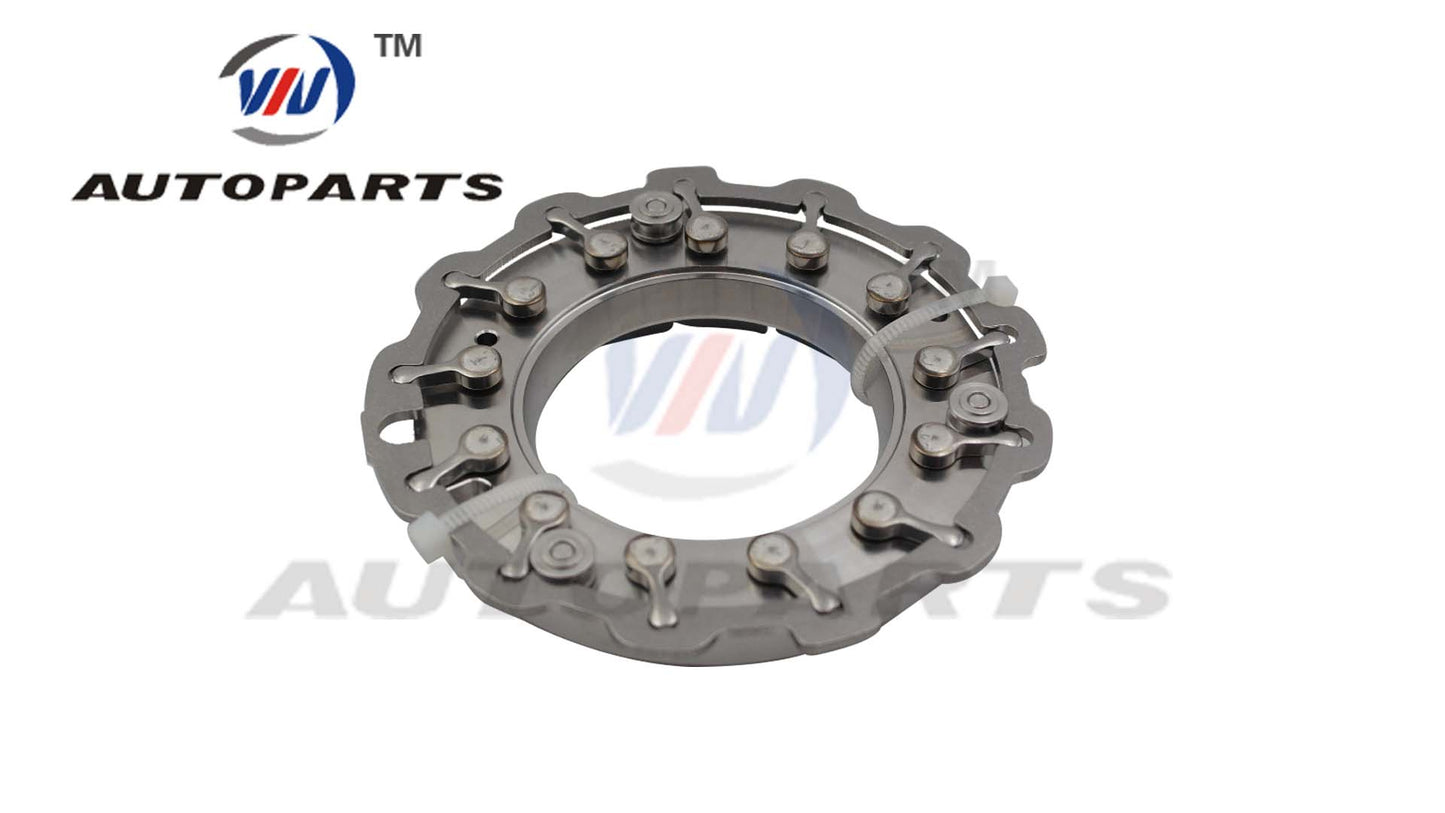

VNT Nozzle Ring VIV07-035VNT for 758351, 769909, 776470 GTB2260VK Turbocharger

Dimensions:
external diameter : 89.6-89.7 mm
internal diameter : 52.7±0.05 mm
Mounting plate Height : 8.7±0.05 mm
Blades Angle : 61
Blades Height : 8.49-8.53 mm
Blades Quantity : 13

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : GTB2260VK

Turbochargers
Part No. : 758351-0003/05/09/13/15/17/19/20/22/24
OE No. : 7794260O14, 11657794260O14, 7794260Q16, 11657794260Q16, 7794260R17, 11657794260R17, 7794260, 11657794260, 7794259H, 7794260014, A7794259H, A7794260014, 7794259F, 11657794259F, 7794259K10, 11657794259K10, 7794259L, 11657794259L, 7794259M12, 11657794259M12, 7794259N13, 11657794259N13, 7794259O14, 11657794259O14, 7794260R17

Part No. : 769909-0009 769909-0010 769909-5009S 769909-5010S 776470-5001S 776470-5003S
OE No. : 059145722R, 059145722M, 059145722R, 95512302500, 5914522M
