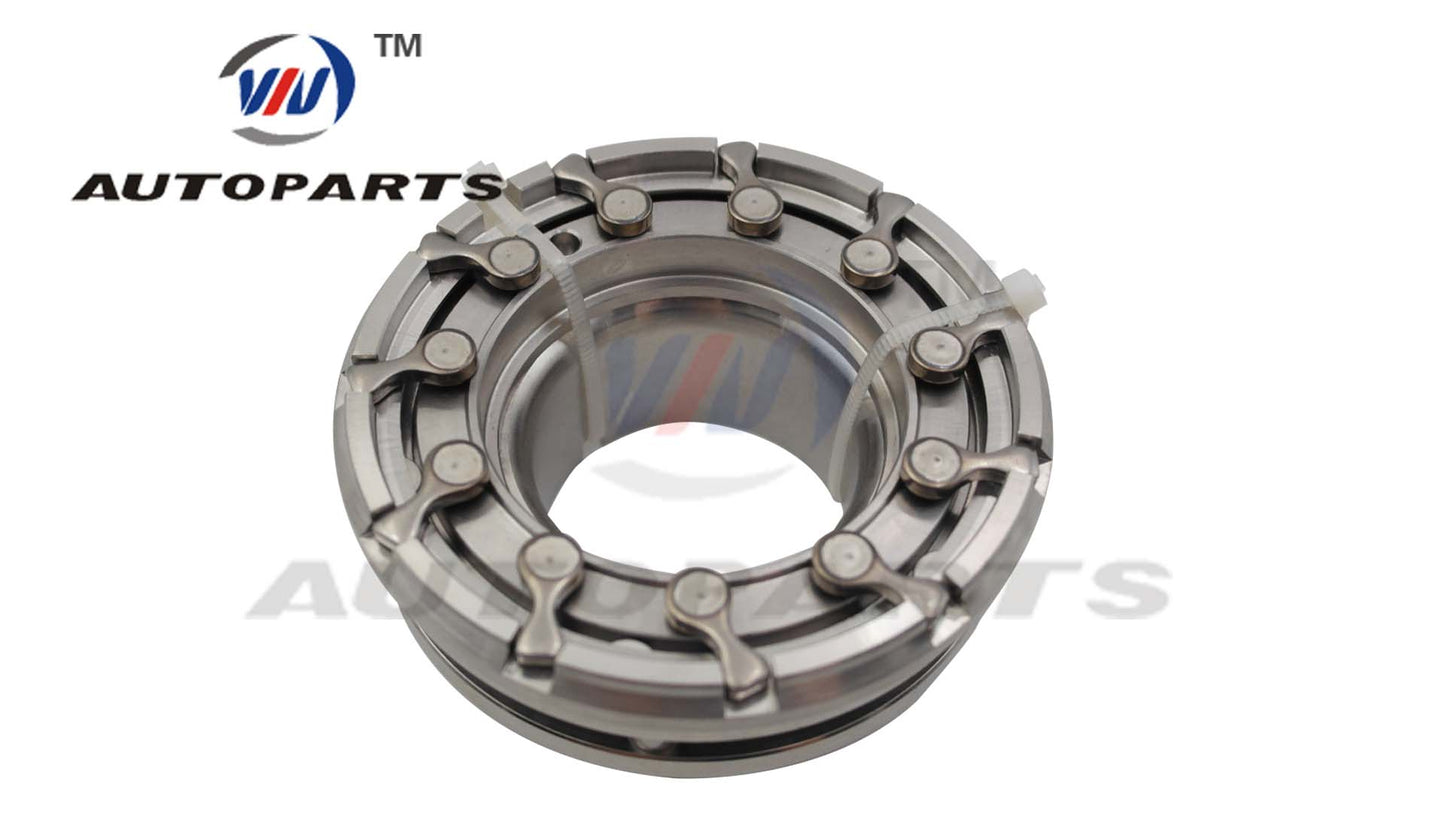

VNT Nozzle Ring VIV07-033VNT for 53049880054/55/63 BV50 Turbocharger

Dimensions:
external diameter : 90.9-91 mm
internal diameter : 52.5±0.05 mm
Mounting plate Height : 11±0.05 mm
Blades Angle : 57
Blades Height : 6.8±0.03 mm
Blades Quantity : 11

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : BV50

Turbochargers
Part No. : 53049700035 53049700043 53049700045 53049700050 53049880050 53049880054
OE No. : 059145715F, 059145702F, 059145702L, 059145702M, 059145702R, 059145702S, 059145715P, 1000030140

Part No. : 53049880044 53049880051 53049880055
OE No. : 059145715E, 059145702T, 059145702N, 1000030159

Part No. : 53049880063 53049880072
OE No. : M282004X901, M28200-4X901, 28200-4X900, 282004X910, 282004X900
