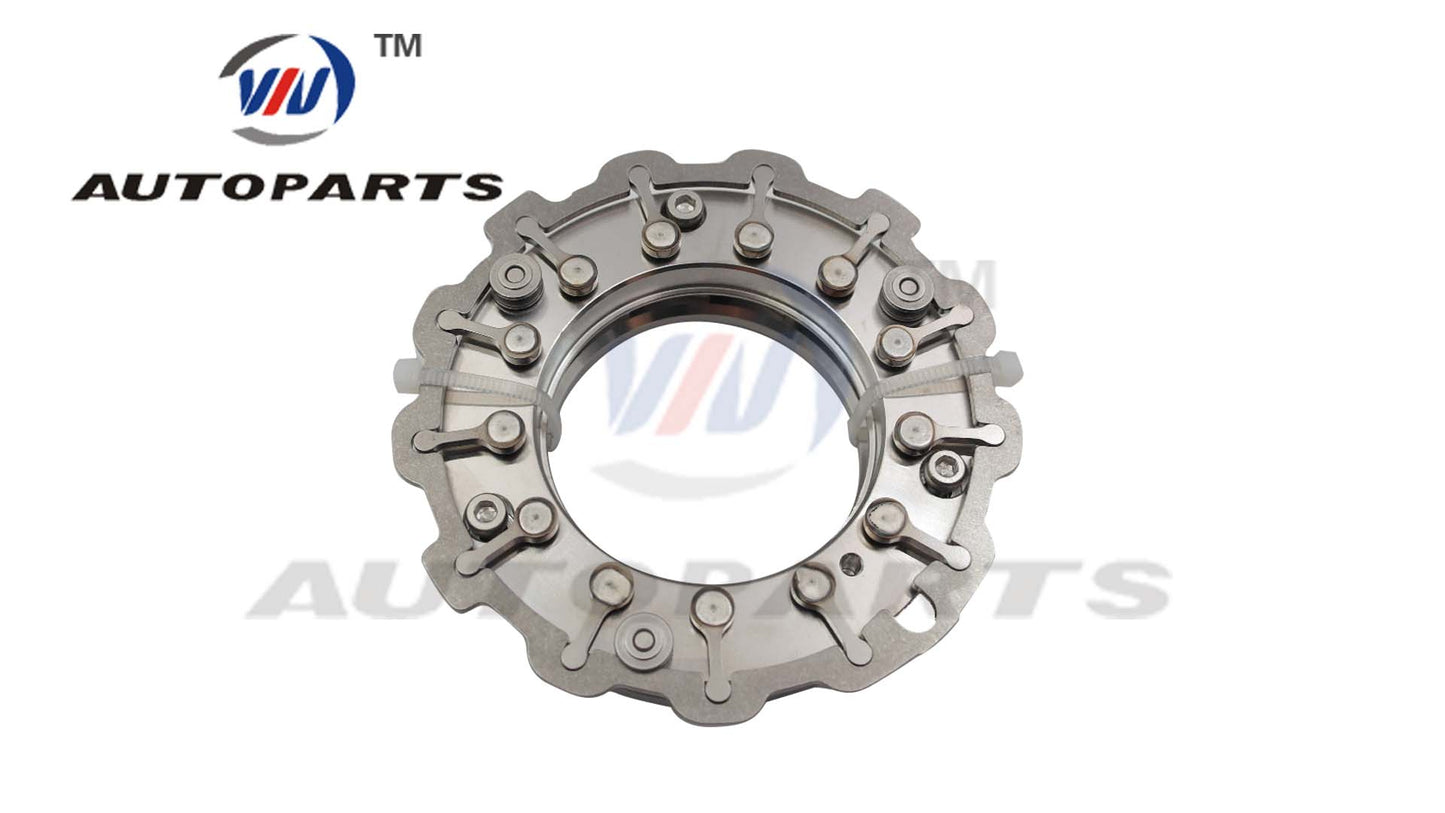

VNT Nozzle Ring VIV07-027VNT for 752610-0015 GTA2052VK Turbocharger

Dimensions:
external diameter : 89.8±0.05 mm
internal diameter : 54.9±0.05 mm
Mounting plate Height : 8.65±0.05 mm
Blades Angle : 59
Blades Height : 6.5±0.03 mm
Blades Quantity : 13

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : GTA2052VK

Turbochargers
Part No. : 752610-0009, 752610-0010, 752610-0012, 752610-0013, 752610-0015, 752610-0025, 752610-0026, 752610-0029, 752610-0032, 752610-5009S, 752610-5010S, 752610-5015S, 752610-5025S, 752610-5032S
OE No. : 6C1Q6K682EM, 6C1Q6K682EN, LR018396, LR021013, 6C1Q6K682EL, LR008203, 6C1Q6K682EE, 6C1Q6K682EF, 6C1Q6K682EH, LR004821, 6C1Q6K682EK, LR006869, LR012858, 6C1Q6K682FA
