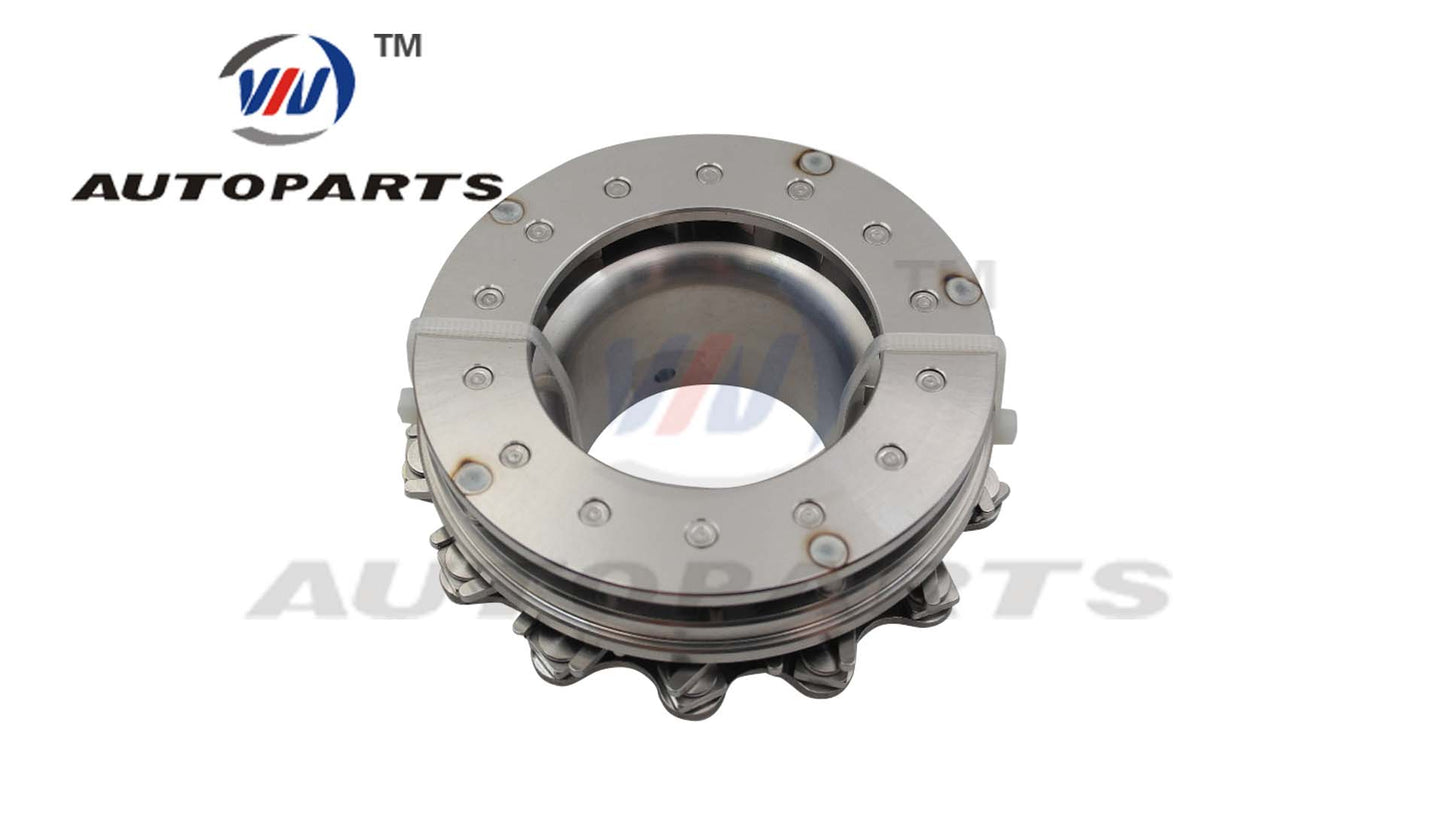

VNT Nozzle Ring VIV07-026VNT for VB15 RHF5V Turbocharger

Dimensions:
external diameter : 92.6±0.05 mm
internal diameter : 45.3-45.4 mm
Mounting plate Height : 34.6±0.05 mm
Blades Angle : 58
Blades Height : 5.3±0.03 mm
Blades Quantity : 14

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : RHF5V

Turbochargers
Part No. : VB15 VAA30020, VBA30020, VCA30020, VDA30020, VEA30020, VFA30020, VGA30020, , VHA30020, VIA30020, VJA30020
OE No. : 17201-26010, 17201-26011, 17201-26012, 17201-460FP
