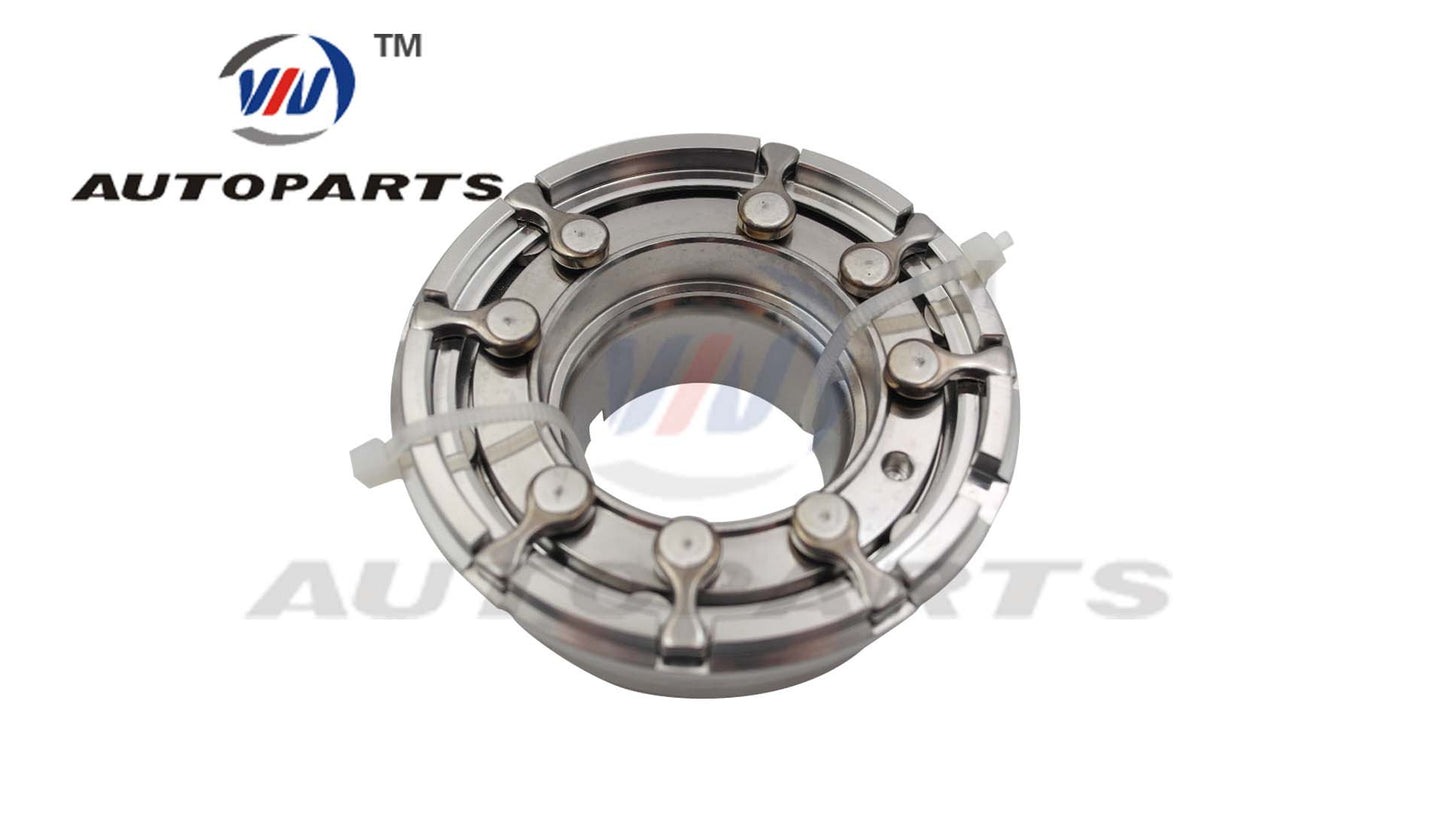

VNT Nozzle Ring VIV07-020VNT for 54399880022, 54399880072 BV39 Turbocharger

Dimensions:
external diameter : 79±0.05 mm
internal diameter : 40.7±0.05 mm
Mounting plate Height : 11.0±0.05 mm
Blades Angle : 57
Blades Height : 5.29-5.33 mm
Blades Quantity : 8

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : BV39

Turbochargers
Part No. : 54399880011 54399880022
OE No. : 038253014G, 038253010D, 038253056E

Part No. : 54399880072
OE No. : 03G253014M, 03G253014MX, 03G253014MV
