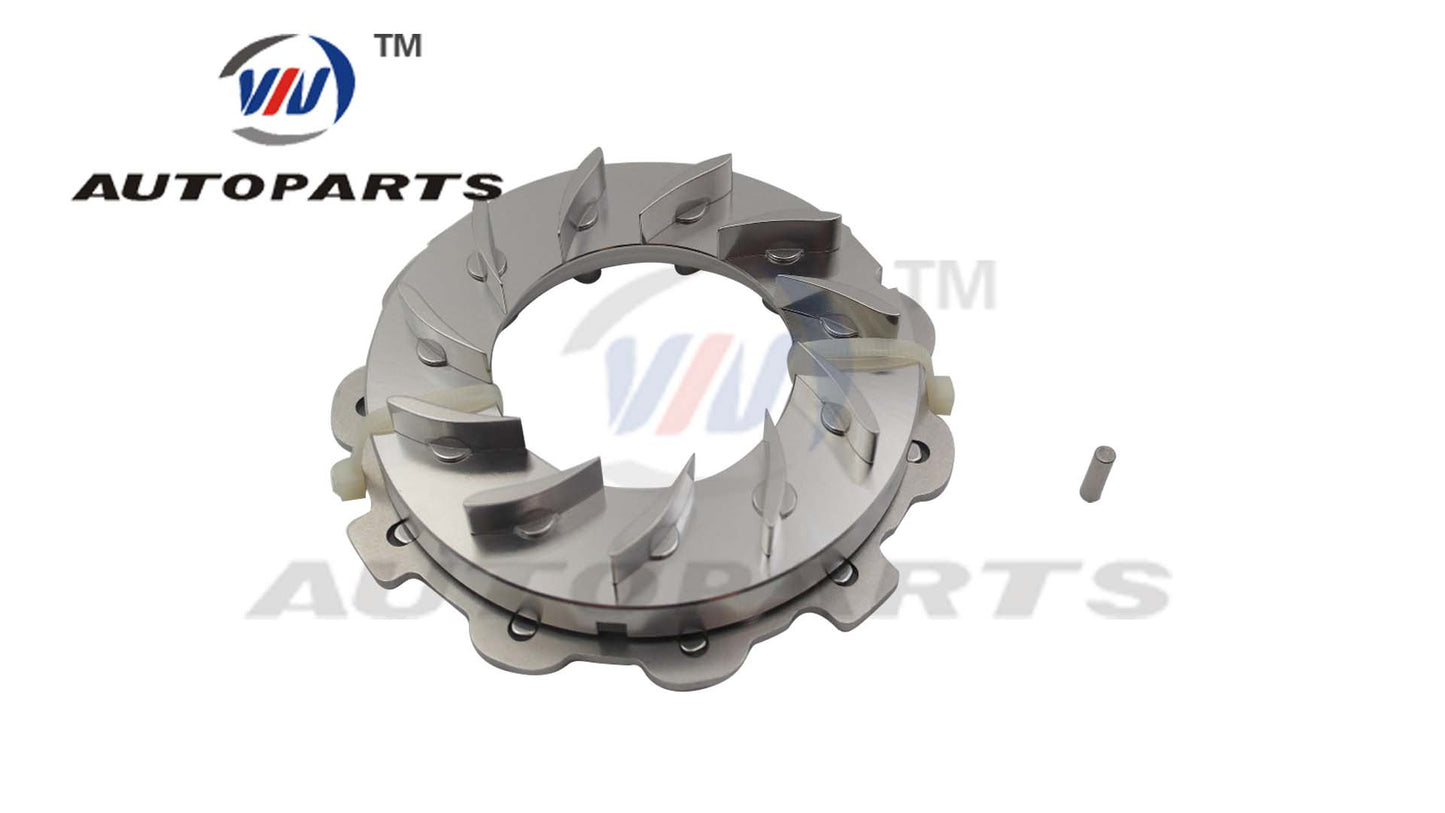

VNT Nozzle Ring VIV07-015VNT for 759688, 760699, 761433 GTB1752V/GTB1749V Turbocharger

Dimensions:
external diameter : 83 mm
internal diameter : 45.4±0.05 mm
Mounting plate Height : 8.7±0.05 mm
Blades Angle : 62
Blades Height : 7.5±0.03 mm
Blades Quantity : 11

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : GTB1749V/GTB1752V

Turbochargers
Part No. : 759688-0002/3/5/7 759688-5007S
OE No. : 6460900480, A6460900480

Part No. : 760699-0002/3/4 760699-5004S
OE No. : 070145701NV210, 070145701NV204, 070145701N, 070145701N, 070145701NX, 070145701NV

Part No. : 761433-0002/3 761433-5003S
OE No. : 6640900780, A6640900780, A6640900880
