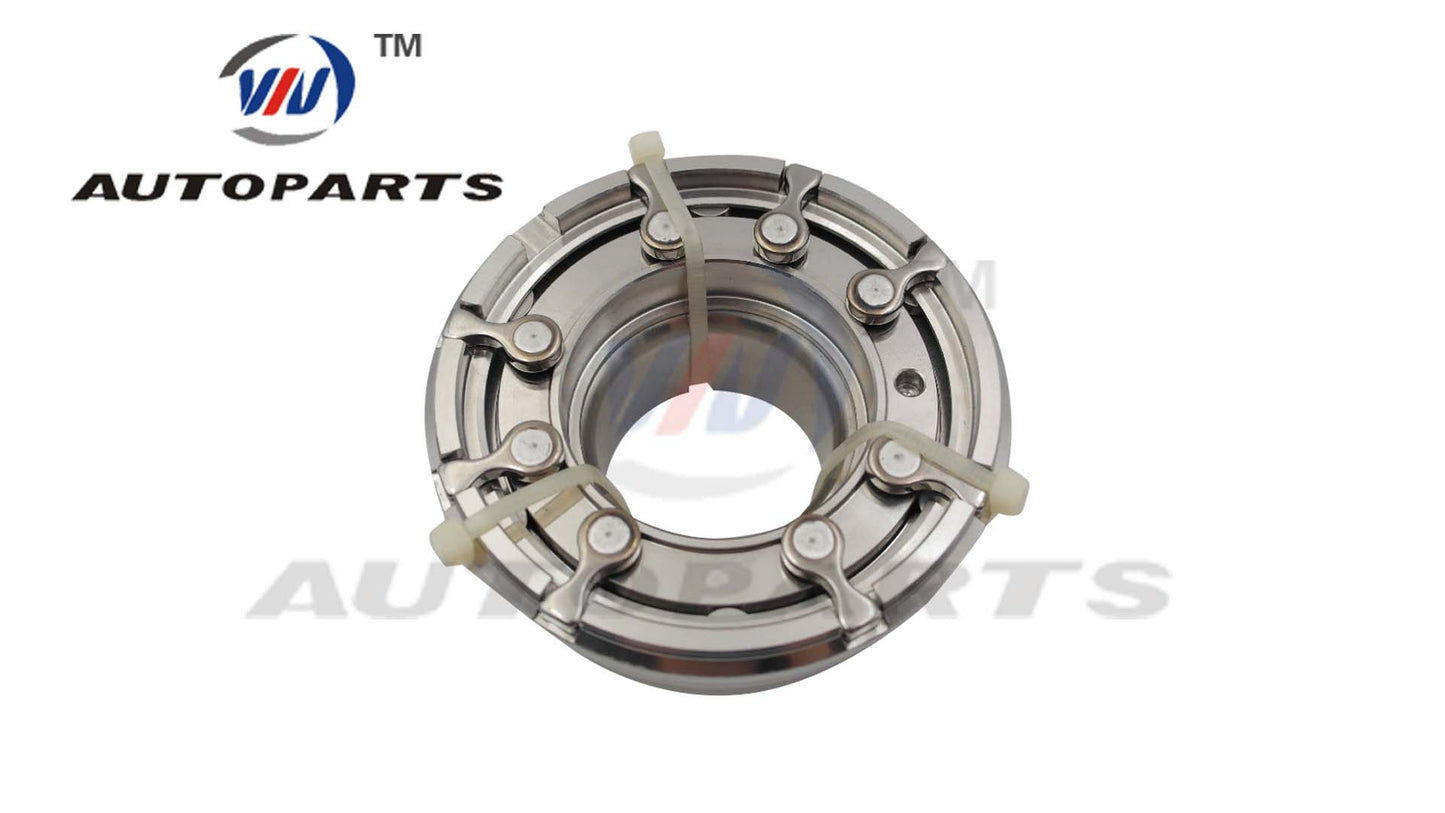

VNT Nozzle Ring VIV07-014VNT for 54399880027/030/059/063/070/112 BV39 Turbocharger

Dimensions:
external diameter : 79±0.05 mm
internal diameter : 40.7±0.05 mm
Mounting plate Height : 11.0±0.05 mm
Blades Angle : 57
Blades Height : 5.29-5.33 mm
Blades Quantity : 8

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Model : BV39


Turbochargers
Part No. : 54399880002 54399880027
OE No. : 8200204572, 8200360800, 8200578315, 7701475135, 7701476183, 7711368163

Part No. : 54399880030 54399880070
OE No. : 7711368560, 8200405203, 8200507856, 8200625683, 8200578381, 7701476883 8200405203, 8200507856, 7701476183, 8200625683, 14411-00Q0F, 1441100Q0F

Part No. : 54399880053 54399880059
OE No. : 03G253016D 038253014P 03G253010E

Part No. : 54399880063 54399880112
OE No. : 6H3Q6K682FF, 6H3Q6K682FE, 6H3Q-6K68-2FF, 6H3Q-6K68-2FE, LR021044, LR003668, LR004038, LR008827，LR004536
