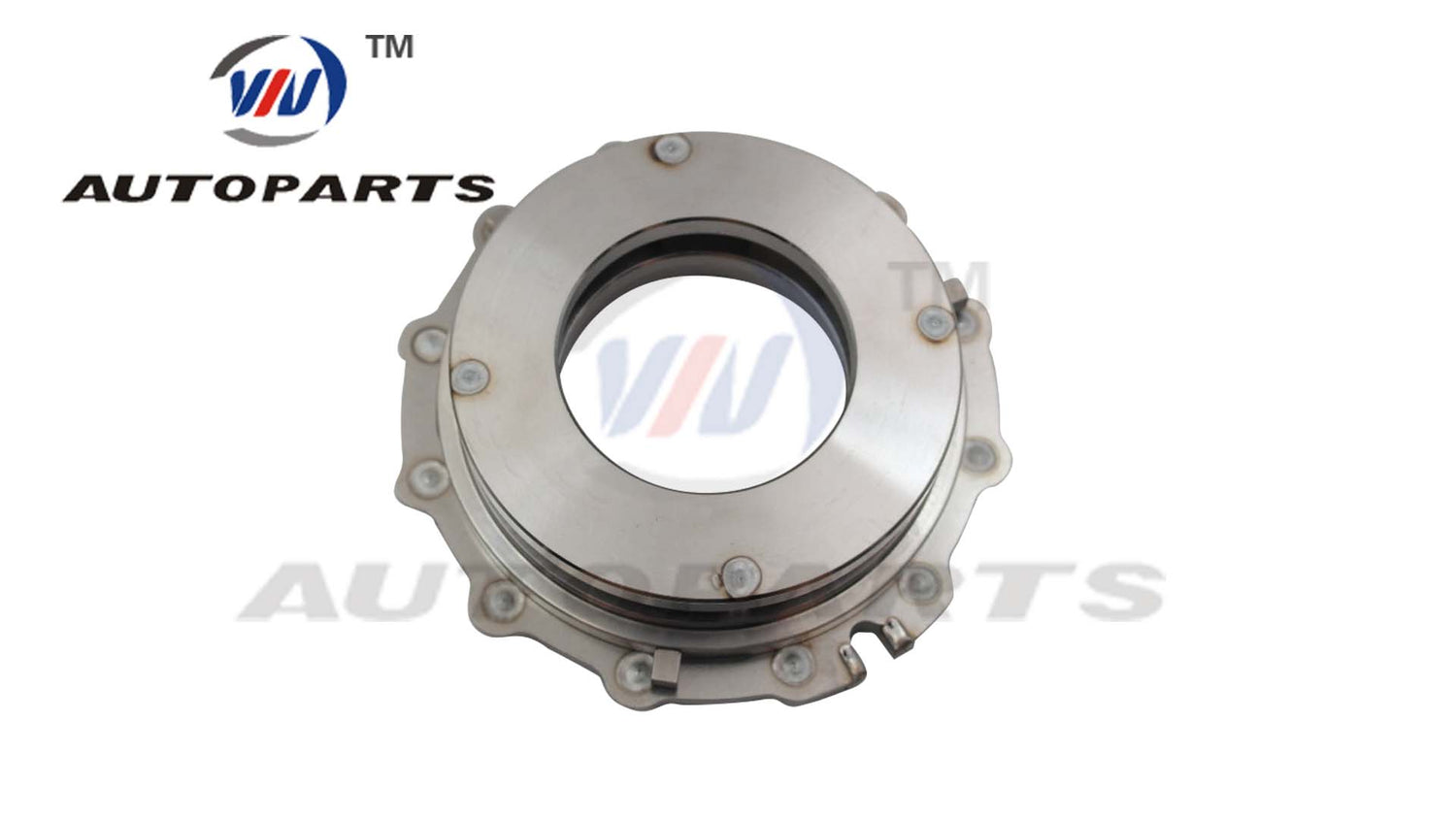

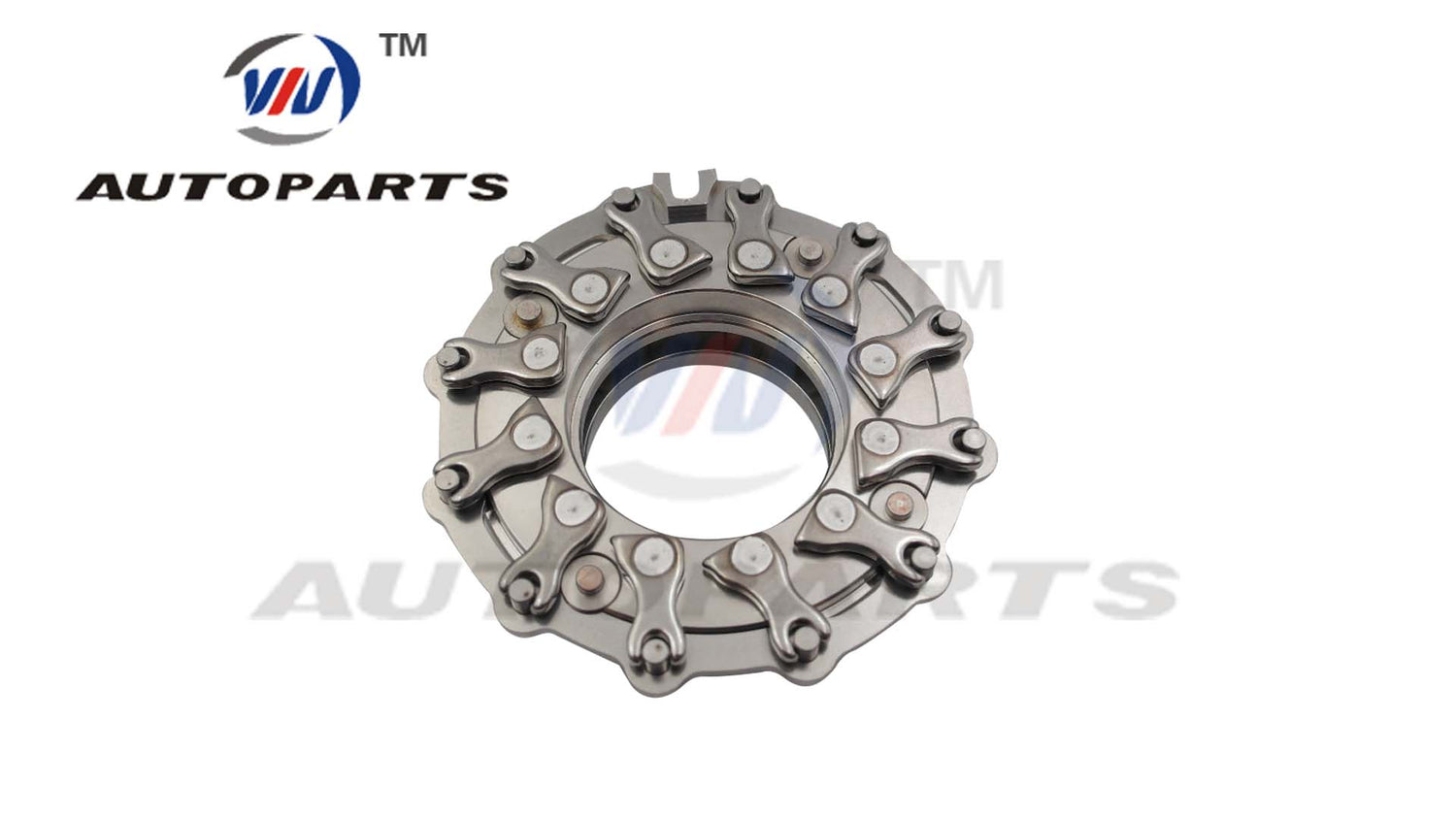

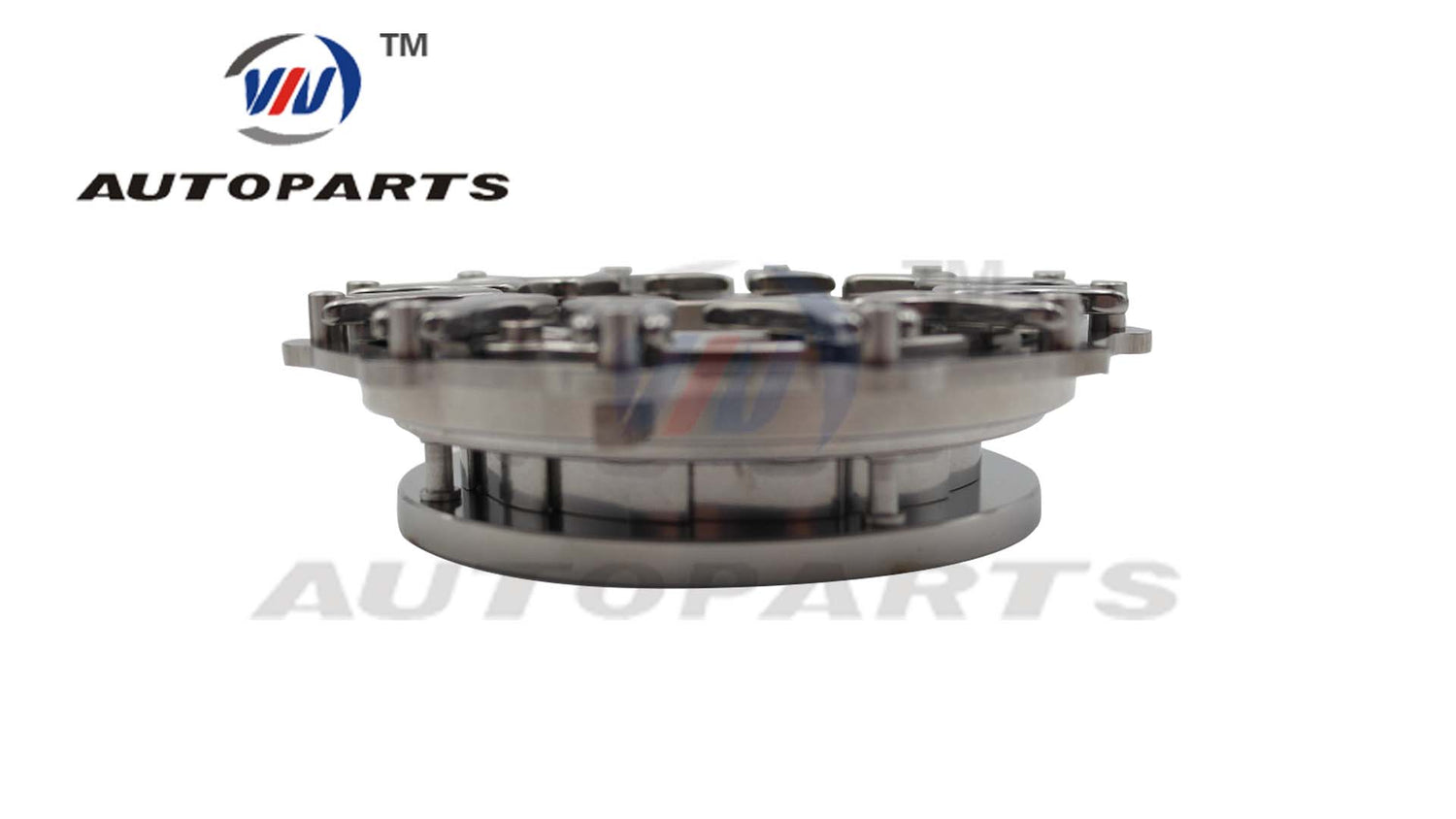

VNT Nozzle Ring VIV07-004VNT for 459135-05671 TF035L Turbocharger

Dimensions:
external diameter : 82.8±0.05 mm
internal diameter : 44±0.05 mm
Mounting plate Height : 11.3±0.05 mm
Blades Angle : 66.00
Blades Height : 7.09-7.13 mm
Blades Quantity : 12

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo Models : TF035L

Turbochargers:

Part No. : 49135-05610, 459135-05620, 459135-05630,459135-05640,459135-05650,459135-05651,459135-05660,459135-05670,459135-05671
OE No. : 7795499, 11657795499, 779549907, 1165779549907, 7795498J09, 11657795498J09, 11654716166, 4716166, 7795498, 7795498D704, 11657795498, 11657795498D704, 779549807, 1165779549807, 7795499K, 7795499K10, 7795498-F/06, 7795498-D/04, 7795499D04
