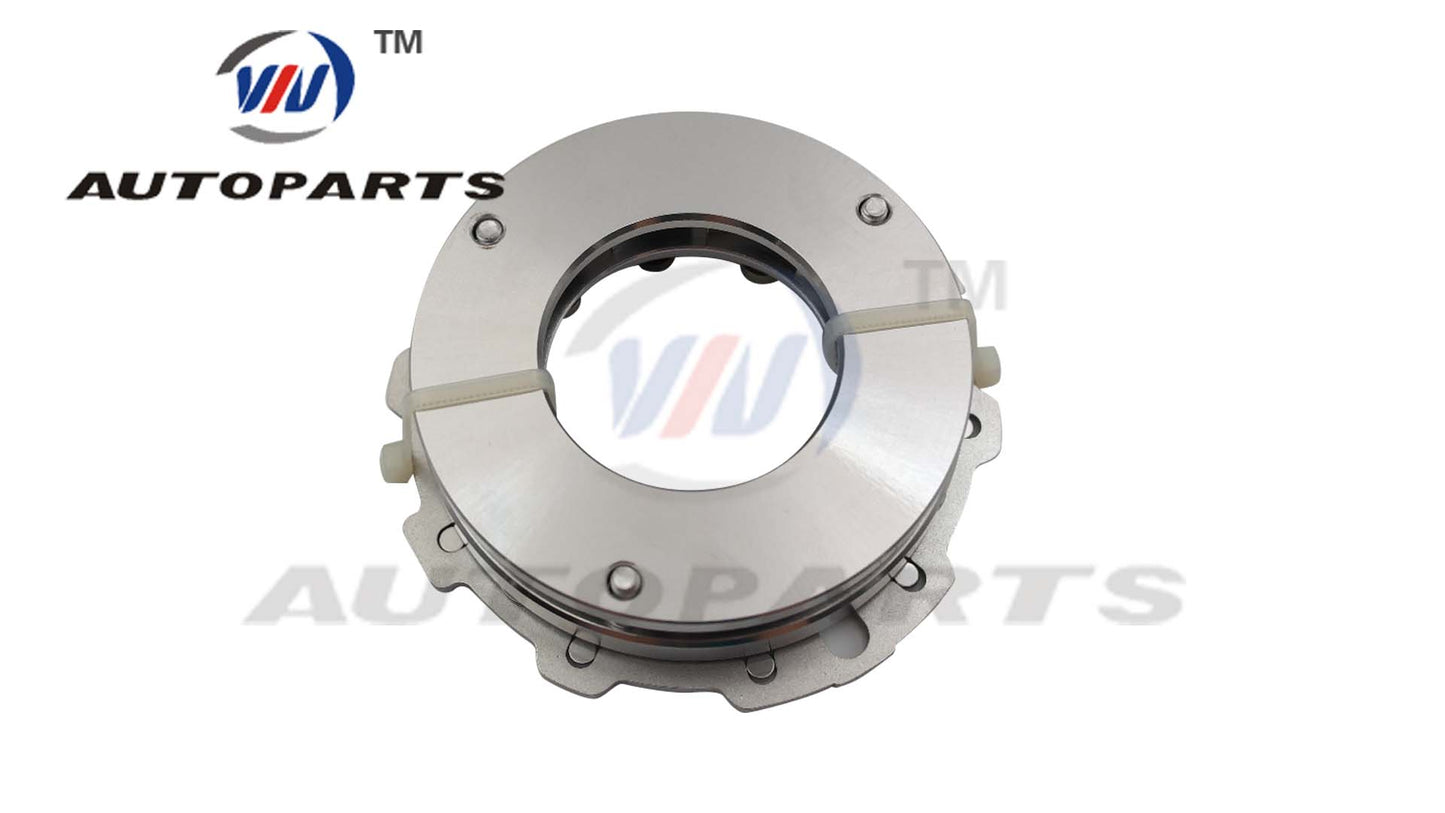

VNT Nozzle Ring VIV07-002VNT for 740611, 740821, 750030, 753420, 774833 varies GT1544V Turbocharger

Dimensions:
external diameter : 78.2±0.05 mm
internal diameter : 41.5±0.05 mm
Mounting plate Height : 8.65±0.05
Blades Angle : 58.00
Blades Height : 5.19-5.23 mm
Blades Quantity : 10

Material List
Guide wheel SUS303Cu
Distance shaft SUS316
Distance sleeve SUS303Cu
Vane HK30
Lining plate GX40CrNISi22-9
Shift fork 310S
Mounting plate GX40CrNISi22-9
Lobulated ring 310S

Application:

Turbo No. : 740611-0002 740611-5002S
OE No. : 282012A400, 28201-2A400

Turbo No. : 740821-0001/2 750030-0001/2 753420-0002/3/4 753420-5005S
OE No. : 9663199280, 7804903, 11657804903, 9660641380, 9663199280, 9654128780, 9657248680, 0375J6, 9657531880, 0375J6, 0375J8, 3M5Q6K682AC, 3M5Q6K682AE, 1319614, 1340133, 9652113780, 1465162, 1479055, 3M5Q6K682AZ, Y60113700G, 0375J6, 9656125880, 9663199280, 9657248680, 9660641380, 9650764480, Y60113700G, 0375J8, 0375J7, 3M5Q-6K682-AE, 1479055, 3M5Q6K682AK, 0375J6, 9663199280, 9660493580, 9650764480, 9654128780, 9663199080, 9656125880, 9651839880, 36002480

Turbo No. : 774833-0001 774833-5002S
OE No. : 7711497401, 8200673417D, 7701478918
