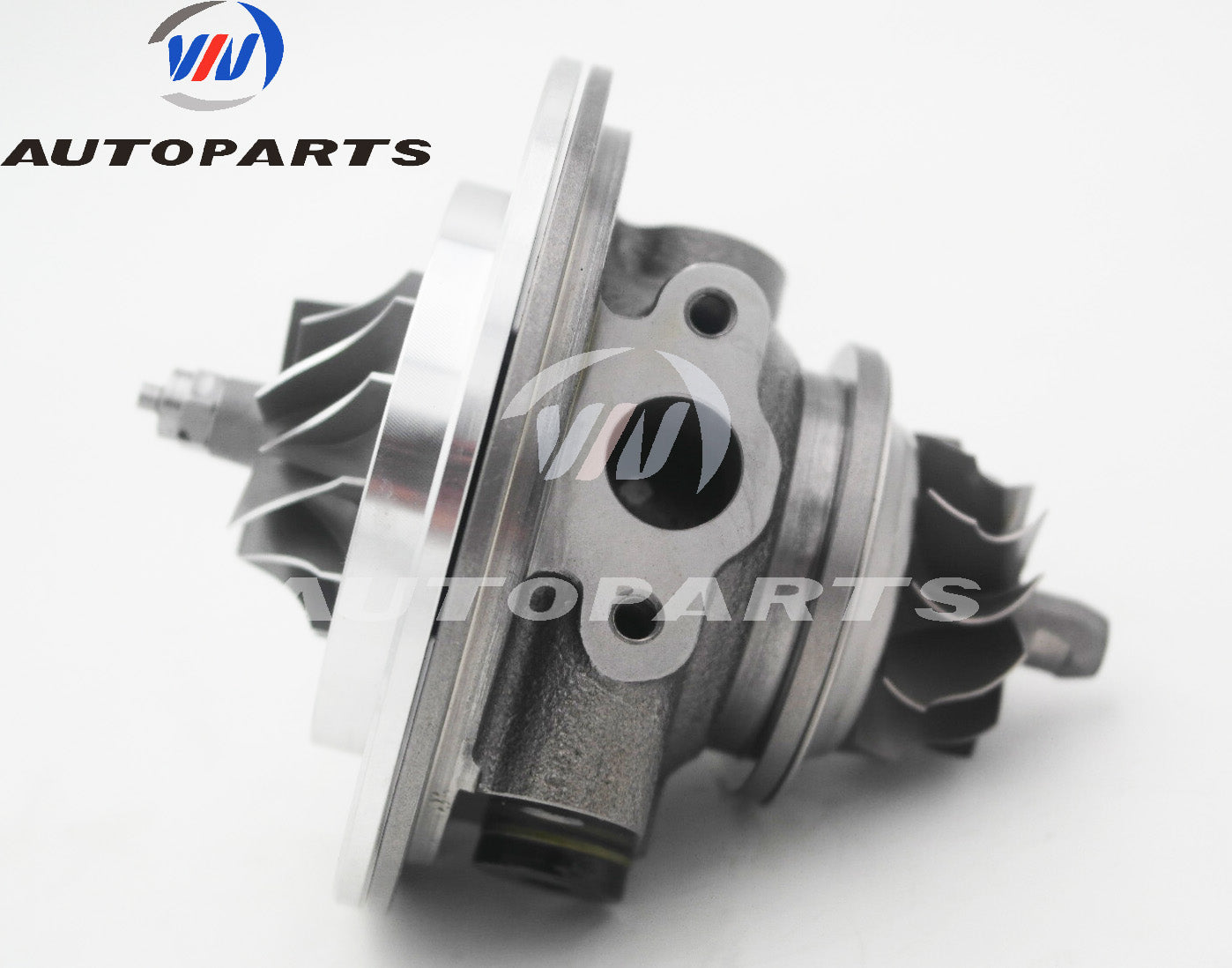

CHRA 53037100502 for Turbocharger 53039880005, 53039880022 for Audi, Seat, Volkswagen varies 1.8L Gasoline Engine
- Regular price
- $135.00 USD
- Regular price
-
- Sale price
- $135.00 USD
- Unit price
- per
Part Number 53039880005
Previous Version 5303-988-0005, 5303 988 0005, 53039880013
OE number 058145703LX, 058145703LV, 058145703E, 058145703C, 058145703H, 058145703L, 058145703D
Year 1996-2012
Description Audi Volkswagen
Manufacturer Part Number 53039700005, 5303-970-0005, 53039700013
CHRA 53037100502 (5303-710-0502) $395.00 NEW IN STOCK, MADE IN USA
Turbo Model K03-2072GAA4.82KCAXKM, KO3-005
Engine 1,8-5V langs/along, AEB, AJL
Displacement 1.8L, 1781 ccm
KW 110/132/150 HP
RPM Max 5500
Fuel Gasoline
Angle α (compressor housing) 160o
Angle β (turbine housing) 150o
Bearing Housing 53041500006/53041500017
Turbine Wheel 53031205029/53031205014
Comp. Wheel 53041232007/53041232018 $58.20
Back plate 53041515702 $19.28
Heat shield Number 5303652000 $9.88
Repair Kit 53037110000 $69.00
Turbine Housing 53031009019
Compressor Cover 53041015003
Turbine Housing AR 4
Actuator 58251104028
Settings Waste gate (pressure) 0.370 bar
Settings Waste gate (lift shaft) 4.00 mm
Gasket (turbine inlet) 210337 (METAL & PAPER GASKET) $11.00
Gasket (turbine outlet) 210242 (STEEL) $11.00
Gasket (oil outlet) 210310 $3.00
Manufacturer Borg Warner - 3K - Schwitzer
Condition Rebuilt
Applications
1996-12 Audi A6, A8 with 1,8L -5V langs/along Engine
